Product description

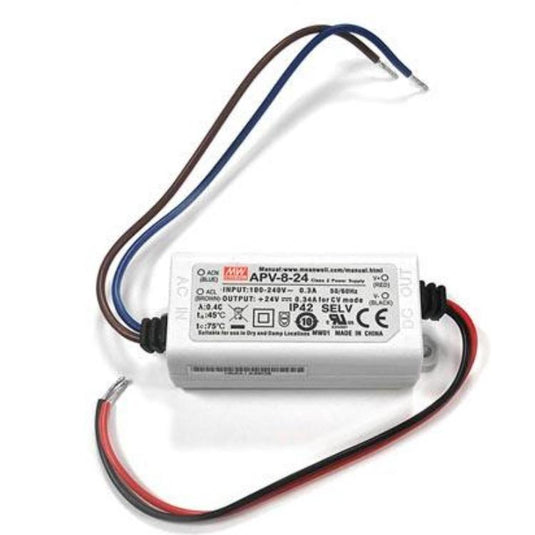

SCHAKELENDE VOEDINGEN VOOR INDUSTRIEEL GEBRUIK SCHAKELENDE VOEDINGEN VOOR INDUSTRIEEL GEBRUIK - MEAN WELL constante spanning universele AC-ingang / volledig bereik class II power unit, no FG volledig geïsoleerd plastic omhulsel IP 42 design klein en compact cooling by free convection beveiligingen: kortsluiting / overbelasting / overspanning verbruik nullast: < 0.5 W 100 % full load burn-in test budgetvriendelijk / hoge betrouwbaarheid 2 jaar garantie enkel voor professioneel gebruik Dit toestel moet geïnstalleerd worden door een vakman. output: DC voltage: 24 V rated current: 0.34 A current range: 0 ~ 0.34 A rated power: 8.16 ripple noise: 300 mV p-p voltage tolerance: 5.0 % line regulation: 1.0 % load regulation: 2.0 % setup, rise time: 500 ms, 30 ms / 230 VAC 1500ms, 30 ms / 115 VAC at full load hold up time: 20 ms / 230 VAC at full load ingang: voltage range: 90 ~ 264 VAC 127 ~ 370 VDC frequentiebereik: 47 ~ 63 Hz efficiency: 81 % AC-stroom: 0.15 A / 230 VAC 0.3 A / 115 VAC inschakelstroom: cold start 70 A at 230 VAC lekstroom: 0.25 mA / 240 VAC protection: short circuit: hiccup mode, recovers automatically after condition is removed over load: above 105 % rated output power over voltage: 27.6 ~ 32.4 V shut off o/p voltage, clamping by zener diode omgeving: working temperatue: -30 ~ +70 °C working humidity: 20 ~ 90 % RH non-condensing storage temperature, humidity: -40 ~ 80 °C, 10 ~ 95 % RH temperature coefficient: 0.03 % vibration: 10 ~ 500 Hz, 2 G 10 min / 1 cycle, period for 60 min each along X, Y, Z axes saftey & EMC: safety standards: UL8750, CSA C 22.2 No 250.0 - 08 approved, design refer to EN60950-1, EN61347-1, En61347-2-13 withstand voltage: I/P - O/P : 3.75 K VAC isolation resistance: I/P - O/P :> 100 Ohms / 500 VDC / 25 °C / 70% RH EMC emission: compliance to EN55022, EN61000-3-2 class A, EN61000-3-3 EMC immunity: compliance to EN55024, EN61000-4-2,3,4,5,6,8,11 , ligth industry level (surge 2KV), critearia A others: MTBF: 1631.5 K hrs min MIL-HDBK-217F (25 °C) dimension: 60 x 30 x 23.5 mm packing: 0.09 k Stel een product vraag
