Product description

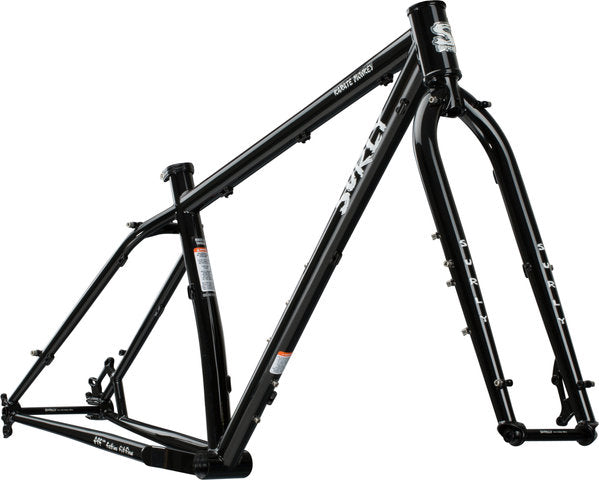

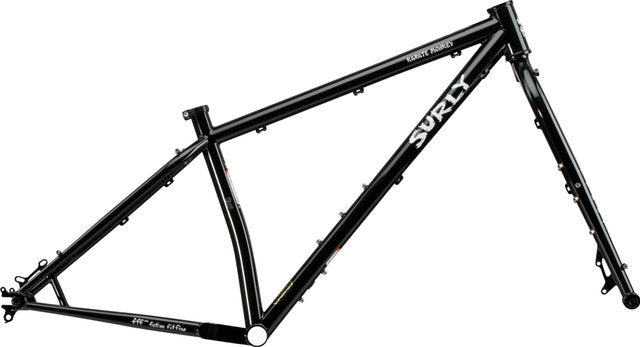

Product Description Especially flexible: The Karate Monkey Frameset by Surly You can ride the Surly Karate Monkey frameset with wide 27.5+ tyres or with normal 29" tyres, whichever you prefer. 27.5+ tyres have the same rolling diameter as a 29" wheel, but with the added traction and comfort of extra-wide tyres. That is just the beginning: Karate Monkey also features progressive, trail-oriented geometry and Gnot Boost Spacing. It allows you to ride the MTB hub of your choice, whether 10 x 135 mm QR, 12 x 142 mm or 12 x 148 mm Boost. The 44 mm head tube is compatible with many fork types, and you can also install an adjustable seatpost. Now go and hit the trail. Specifications:Application:Trail, Cross CountryWheel Size:29" , 27.5" +Size:XS, S, M, L, XLMaterial:steel (Surly 4130 CrMo)Technical Information:Rear Over Locknut Dimension:142 mm, 148 mm (Gnot Boost)Axle Type:12 mm thru-axleSeatpost (Ø):30.9 mmSeatpost Clamp(Ø):33.1 mmHeadset:ZS44/28.6-EC44/30Steerer tube rec.:1 1/8"Fork Axle to Crown:483 mmRecommended Fork Travel:140 mmBottom Bracket Standard:BSAShell Width:73 mmBrake Mount:disc ISFront Derailleur Mount:Direct Mount (High-Direct)Bottle Cage Mounts:2 or 3 (depending on size)Accessory Mounts:braze-ons for racks and fendersTechnical Information - Fork:Steerer Tube:1 1/8"Axle Type:thru-axle (15 x 110 mm)Brake Mount:disc ISOffset:47 mmAxle to Crown:483 mmOver Locknut Dimension:110 mm (Boost)Crown Race Diameter:30 mmSteerer Tube Material:steelBlade Material:steelAccessory Mounts:bottle cage mounts, braze-ons for racks & fendersApproved For:Rotor Size (max.):180 mmTyre Size (max.):3.0" (27.5" ), 2.5" (29" )Chainrings:2x, 1xChainring Size (max.):2x 24-34 t, 24-36 t Boost, 1x 28 t, 32 t BoostFork Axle to Crown Size (max.):547 mmFeatures:Natch pipeshorizontal dropouts (with Rohloff mount)cable guides for Vario supportsstraight tapered fork bladesASTM Category 3Technology:Gnot Boost: The Surly Gnot Boost technology allows the mounting of different over locknut dimensions on the rear wheel. Rear wheels with 12 x 142 mm or 12 x 148 mm thru-axles can be mounted by clamping or spreading the frame. Wheels with an over locknut dimension of 135 mm can be operated in frames with Gnot Boost technology using the rear wheel axle adapter. Colour Index:lemon lime soda:yellowManufacturer's Notice:When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube. Models:XS: Recommended Height:152 - 165 cmStack:597 mmReach:377 mmSeat Tube Length:330 mmTop Tube Length:557 mmEffective Top Tube Length:560 mmHead Tube Length:100 mmChainstay Length:423 mmWheelbase:1053 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:743 mm S: Recommended Height:162 - 173 cmStack:597 mmReach:402 mmSeat Tube Length:368 mmTop Tube Length:568 mmEffective Top Tube Length:585 mmHead Tube Length:100 mmChainstay Length:423 mmWheelbase:1078 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:761 mm M: Recommended Height:170 - 183 cmStack:597 mmReach:427 mmSeat Tube Length:419 mmTop Tube Length:582 mmEffective Top Tube Length:610 mmHead Tube Length:100 mmChainstay Length:423 mmWheelbase:1103 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:783 mm L: Recommended Height:180 - 190 cmStack:606 mmReach:450 mmSeat Tube Length:470 mmTop Tube Length:604 mmEffective Top Tube Length:635 mmHead Tube Length:110 mmChainstay Length:423 mmWheelbase:1129 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:811 mm XL: Recommended Height:188 - 198 cmStack:615 mmReach:472 mmSeat Tube Length:521 mmTop Tube Length:630 mmEffective Top Tube Length:660 mmHead Tube Length:120 mmChainstay Length:423 mmWheelbase:1155 mmBB Drop:55 mmSeat Tube Angle:73.0°Head Tube Angle:69.0°Standover Height:840 mmContents:1 x Surly Karate Monkey frame1 x Surly Karate Monkey fork1 x Surly stainless steel seatpost clamp1 x Surly HU0138 front thru-axle1 x Surly HU0134 rear thru-axlenot incl. Karate Monkey spacernot incl. Gnot Boost rear axle adapter Manufacturer: Surly 6400 W 105th St Bloomington MN 55438 USA derby@surlybikes.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
