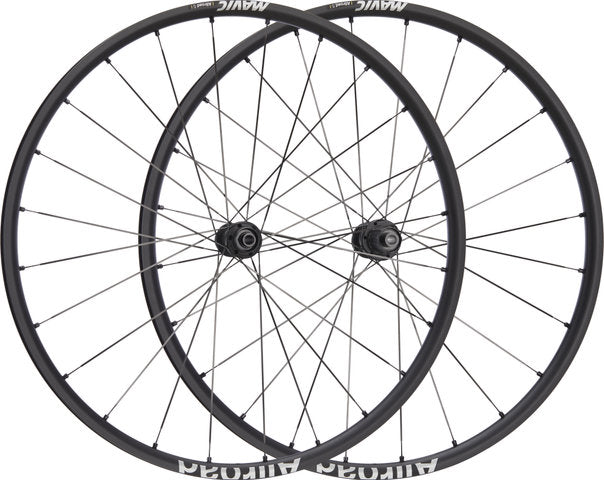

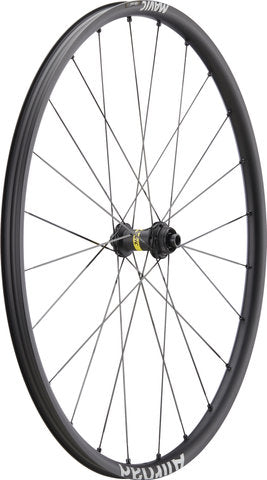

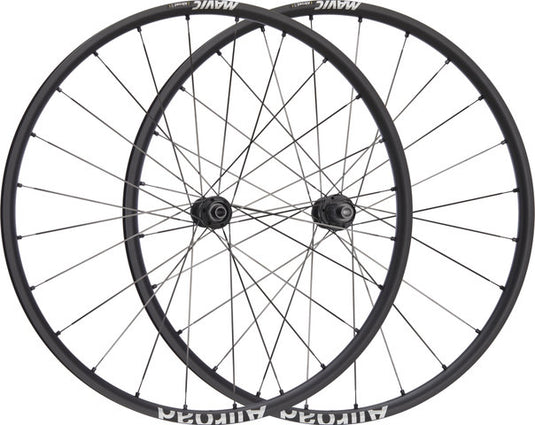

Product Description Mavic Allroad S Gravel wheelset - strong performance on rough roads and trails The Mavic Allroad S is a reliable, durable 28" wheelset for gravel adventures, bikepacking or everyday rides. It has hookless aluminium rims with a generous jaw width of 25 mm, allowing tyres up to 64 mm wide. You can also run it tubeless, which has advantages such as lower tyre pressure, less weight and more puncture protection. Not even rim tape is required, because the Fore technology keeps the rim completely airtight. At the centre of the Allroad S wheels, there are Center Lock Disc hubs with Infinity technology for optimised spoke reception. The QRM auto bearing with automatic preload saves you cumbersome adjustment. At the rear, the Instant Drive 360 freehub ensures fast engagement. Although the wheelset is designed for thru-axles, it can also be converted to quick releases. It was laced with 24 double-butted bladed spokes at the front and rear, which support aerodynamics and agility. Thanks to its high-quality deep black finish, the appearance of the Allroad S is also in no way inferior to its performance. Specifications:Application:Gravel, City & Touring, RoadWheel Size:28"Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:UST TubelessTechnical Information - Rim:Rim Flange:hooklessDimensions (ETRTO):25-622Inner Width:25 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminium (Maxtal)Technical Information - Front Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 100 mm thru-axleBearings:QRM AutoBody Material:aluminiumTechnical Information - Rear Hub:Type:Mavic InfinityOver Locknut Dimension:12 x 142 mm thru-axleBearings:QRM AutoBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Instant Drive 360Technical Information - Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:straight pull / flat / double buttedSpoke Material:steelNipple Type:Fore, integratedNipple Material:aluminiumApproved For:Weight Limit:120 kg total weight* (rider, gear & bike)Air Pressure (max.):4.05 bars with 30 mm tyres, 2.45 bars with 64 mm tyresRecommended Tyre Width:30 - 64 mm (1.2 - 2.5" )Tyre Type:Due to its hookless rims, it is only approved for use with UST tubeless tyres and clincher tyres with inner tubes. Follow the tyre manufacturer's instructions for use. * recommended for increased durability Features:robust 28" aluminium wheelset for gravel and bikepacking25 mm wide, hookless UST rims for tyres from 30 to 64 mm widthadvantages such as lower tyre pressure, more puncture protection, less friction and less weight due to tubeless mountingno rim tape required thanks to Fore rim holes (saves approx. 30 g)laterally stiff and vertically compliant for a dynamic rideoversize axles and bearings for more lateral stabilityInfinity hub design for optimal lacingautomatic bearing preload for low maintenance and long durabilitylight ID360 freehub and weight-optimised bladed spokesimpressive look with matte lacquered hubs, deep black rims and spokesrim profile optimised for disc brakesrim joint welded (SUP)aluminium hub axlesfront can be optionally converted to 9 mm quick release or 15 mm thru-axle (adapter or axle not included)rear convertible to 10 mm quick release (adapter and axle not included)ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cmTechnology:Maxtal Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims. SUP SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel. Infinity Hub Design Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given. QRM Auto QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times. Instant Drive 360 The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction. Fore Tapeless Tubeless Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings. Models:28" set (front 12x100 + rear 12x142) Shimano: Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.Manufacturer Number:P00020803Conversion Options:To convert to Campagnolo, a Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.Contents:1 x Mavic Allroad S Disc wheelset (front & rear)2 x UST valve with accessoriesOrder Together:Optional accessories: front adapter for conversion to 9 mm quick releasefront axle for conversion to 15 mm thru-axlerear adapter for conversion to 10 mm quick release (axle no. V2373401 also required)extra-light freehub body for Shimano Road Weight: black | Non Boost | Non Boost | 142 mm | 100 mm | 28" | Shimano Road | 100 mm | Shimano Road | 100 mm | 142 mm: 1790 g Manufacturer: Mavic Group Germany GmbH Geigelsteinstraße 10 83080 Oberaudorf Germany info@mavic.com
