Product description

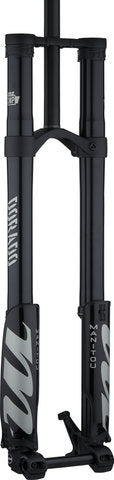

Product Description The Manitou Dorado Comp is a 27.5" downhill suspension fork with stiff 37 mm uprights that combines the distinctive Upside-Down design with a low-maintenance steel coil with sensitive response. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:DownhillWheel Size:27.5"Suspension Type:steel coilTravel:203 mmSteerer Tube:1 1/8"Axle Type:thru-axleWheel Standard:20 x 110 mm (Boost)Brake Mount:disc PM8 (direct mount 203 mm)Technical Information:Offset:47 mmSteerer Tube Length:270 mmSteerer Tube Diameter (Stem):28.6 mmSteerer Tube Diameter (Crown Race):30 mmAxle to Crown:582 mmOver Locknut Dimension:110 mmStanchion Tube Diameter:37 mmSteerer Tube Material:AluminiumCrown Material:AluminiumStanchion Tube Material:aluminium (6000)Lower Tube Material:aluminium (6000)Adjustment Options:Compression:low-speedRebound:yesSuspension Stiffness:steel coil adjustRemote:noTravel Adjustment:noApproved For:Tyre Size (max.):27.5 x 2.6"Rotor Size (max.):223 mmFeatures:suitable for e-bikesUpside-Down design provides increased stiffness in the longitudinal direction with the same torsional stiffness, thus improved control in rough terrainconstant lubrication of seals37 mm chassis 20% stiffer than previous versionsteel suspension with fine response and easy maintenancemedium steel coil pre-installed for recommended rider weight of 68 - 79 kgreliable, adjustable Absolute Plus (ABS+) dampingTSR bleed screws for pressure compensationfork crown with 47 mm offset intended for 27.5" tyreswith stone guard for the stanchion tubesManufacturer Number:191-37873-A101 Contents:1 x 1 x Manitou brake rotor adapter1 x SAG measuring bar with 1 x brake hose guide and 2 x spacers (detachable)8 x bolts1 x Manitou decal set Manufacturer: Manitou (Hayes Performance Systems) 5800 W. Donges Bay Rd. Mequon WI 53092 USA info@manitou.com Distributor: MERIDA & CENTURION Germany GmbH Blumenstraße 49-51 71106 Magstadt Germany vertrieb@merida-centurion.com
