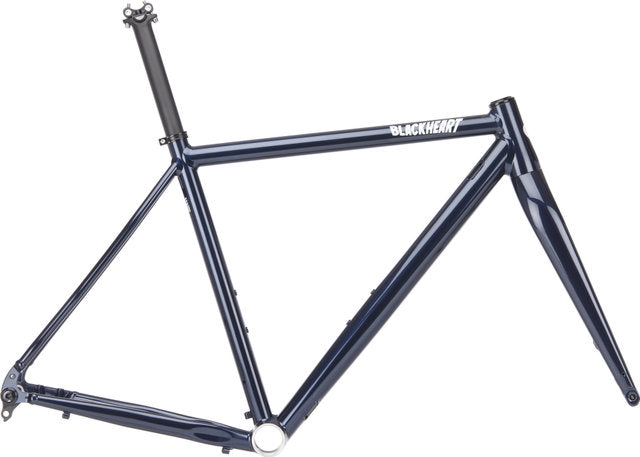

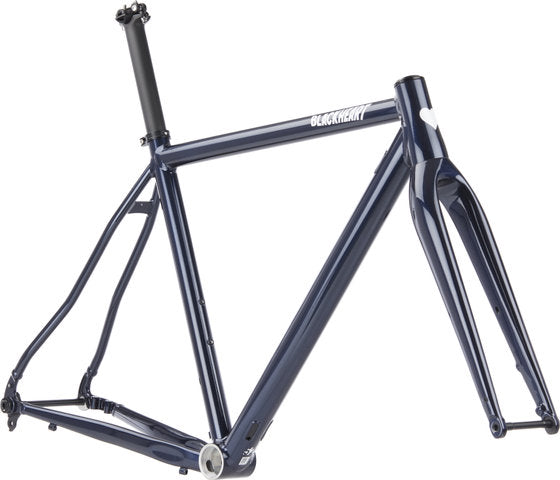

Blackheart allroad al frameset

Product Description Crafted for the discerning cyclist who ventures onto both road and gravel, this Allroad AL frameset by Blackheart is designed to accommodate both men and women riders. Its aluminum frame, paired with a carbon fork, promises a blend of durability and lightweight performance, ensuring a ride that's both responsive and comfortable. The frame is engineered to support a seatpost diameter of 31.6 mm and features a bolt design for secure fitting. Compatibility with a wide range of wheel sizes, including 27.5" and 28", along with both 12 x 100 mm and 12 x 142 mm standard wheel setups, offers flexibility for various terrains and riding styles. The bike supports disc brakes with a direct mount rim brake system, providing superior stopping power in all conditions. With a bottom bracket standard of BSA and a maximum fork length of 400, it caters to robust construction and optimal geometry. The frame is compatible with standard 7 x 7 mm saddle rails and allows for a max chainring size of 1x 44T or 2x 36-50T, accommodating both single and double chainring setups. This frame is the perfect foundation for cyclists looking to conquer both paved roads and rugged gravel paths with confidence and style. Product Specifications: Wheel size:27,5", 28" seat clamp type:Bolt Brake Type:disc Application:Gravel, Road, City & Touring Compatible Saddle Rails:7 x 7 mm (Standard) Frame material:Aluminum Fork material:Carbon Gender:Women's, Men´s cosmic blue | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s cosmic blue | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s mystic grey | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Wheel size:28" Gender:Women's, Men´s Technical Information: Seatpost diameter:31,6 mm Brake Mount:Direct Mount Rim Brake Wheel Standard:12 x 100 mm (Standard), 12 x 142 mm (Standard) Bottom bracket standard:BSA cosmic blue | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm cosmic blue | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm mystic grey | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:47 mm Approved For: Max. Fork Length:400 mm Chainring Count Compatibility:1x, 2x Max. Chainring Size:1x 44T, 2x 36-50T Max Tire Size Rear:40-622 (700 x 40C) Product Features: Versatile bike frame designed for both road and gravel riding, accommodating both men and women with its adaptable design.Features a lightweight aluminum frame paired with a carbon fork for a perfect balance of durability and comfort.Compatible with a wide range of wheel sizes, including 27.5" and 28", and designed for disc brake systems.Offers flexibility in drivetrain setups with chainring count compatibility for 1x (up to 44T) and 2x (36-50T) configurations.Supports a seatpost diameter of 31.6 mm and standard saddle rails of 7 x 7 mm, ensuring a wide range of seatpost and saddle options.Designed with a BSA bottom bracket standard and direct mount rim brake, providing a reliable and easy-to-maintain setup.UDH rear derailleur hanger. Geometry: cosmic blue | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:533 mm Standover Height:27 Wheelbase:991 mm Reach:372 mm Seat Tube Angle:73.5 BB Drop:73 mm Top Tube Length:530 mm Frame Size:46 cm Recommended Rider Height:152 - 160 cm Seat Tube Length:460 mm Head Tube Length:100 mm cosmic blue | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:542 mm Standover Height:28 Wheelbase:997 mm Reach:374 mm Seat Tube Angle:73 BB Drop:73 mm Top Tube Length:540 mm Frame Size:49 cm Recommended Rider Height:160 - 168 cm Seat Tube Length:490 mm Head Tube Length:110 mm cosmic blue | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:551 mm Standover Height:29 Wheelbase:1002 mm Reach:376 mm Seat Tube Angle:72.5 BB Drop:72 mm Top Tube Length:550 mm Frame Size:52 cm Recommended Rider Height:168 - 173 cm Seat Tube Length:520 mm Head Tube Length:120 mm cosmic blue | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72 Stack:567 mm Standover Height:30 Wheelbase:1008 mm Reach:381 mm Seat Tube Angle:72.5 BB Drop:72 mm Top Tube Length:560 mm Frame Size:54 cm Recommended Rider Height:173 - 178 cm Seat Tube Length:540 mm Head Tube Length:135 mm cosmic blue | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72 Stack:580 mm Standover Height:31 Wheelbase:1018 mm Reach:387 mm Seat Tube Angle:72.5 BB Drop:71 mm Top Tube Length:570 mm Frame Size:56 cm Recommended Rider Height:178 - 183 cm Seat Tube Length:560 mm Head Tube Length:150 mm cosmic blue | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:596 mm Standover Height:32 Wheelbase:1023 mm Reach:392 mm Seat Tube Angle:72.5 BB Drop:71 mm Top Tube Length:580 mm Frame Size:58 cm Recommended Rider Height:183 - 188 cm Seat Tube Length:580 mm Head Tube Length:165 mm cosmic blue | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:609 mm Standover Height:33 Wheelbase:1033 mm Reach:398 mm Seat Tube Angle:72.5 BB Drop:70 mm Top Tube Length:590 mm Frame Size:60 cm Recommended Rider Height:188 - 193 cm Seat Tube Length:600 mm Head Tube Length:180 mm cosmic blue | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:624 mm Standover Height:34 Wheelbase:1048 mm Reach:408 mm Seat Tube Angle:72.5 BB Drop:70 mm Top Tube Length:605 mm Frame Size:62 cm Seat Tube Length:620 mm Head Tube Length:195 mm Recommended Rider Height:193 - 200 cm mystic grey | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:533 mm Standover Height:27 Wheelbase:991 mm Reach:372 mm Seat Tube Angle:73.5 BB Drop:73 mm Top Tube Length:530 mm Frame Size:46 cm Recommended Rider Height:152 - 160 cm Seat Tube Length:460 mm Head Tube Length:100 mm mystic grey | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:542 mm Standover Height:28 Wheelbase:997 mm Reach:374 mm Seat Tube Angle:73 BB Drop:73 mm Top Tube Length:540 mm Frame Size:49 cm Recommended Rider Height:160 - 168 cm Seat Tube Length:490 mm Head Tube Length:110 mm mystic grey | S | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:71.5 Stack:551 mm Standover Height:29 Wheelbase:1002 mm Reach:376 mm Seat Tube Angle:72.5 BB Drop:72 mm Seat Tube Length:520 mm Head Tube Length:120 mm Top Tube Length:550 mm Frame Size:52 cm Recommended Rider Height:168 - 173 cm mystic grey | M | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72 Stack:567 mm Standover Height:30 Wheelbase:1008 mm Reach:381 mm Seat Tube Angle:72.5 BB Drop:72 mm Top Tube Length:560 mm Frame Size:54 cm Recommended Rider Height:173 - 178 cm Seat Tube Length:540 mm Head Tube Length:135 mm mystic grey | L | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72 Stack:580 mm Standover Height:31 Wheelbase:1018 mm Reach:387 mm Seat Tube Angle:72.5 BB Drop:71 mm Top Tube Length:570 mm Frame Size:56 cm Recommended Rider Height:178 - 183 cm Seat Tube Length:560 mm Head Tube Length:150 mm mystic grey | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:596 mm Standover Height:32 Wheelbase:1023 mm Reach:392 mm Seat Tube Angle:72.5 BB Drop:71 mm Top Tube Length:580 mm Frame Size:58 cm Recommended Rider Height:183 - 188 cm Seat Tube Length:580 mm Head Tube Length:165 mm mystic grey | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:609 mm Standover Height:33 Wheelbase:1033 mm Reach:398 mm Seat Tube Angle:72.5 BB Drop:70 mm Top Tube Length:590 mm Frame Size:60 cm Recommended Rider Height:188 - 193 cm Seat Tube Length:600 mm Head Tube Length:180 mm mystic grey | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": Head Tube Angle:72.5 Stack:624 mm Standover Height:34 Wheelbase:1048 mm Reach:408 mm Seat Tube Angle:72.5 BB Drop:70 mm Top Tube Length:605 mm Frame Size:62 cm Recommended Rider Height:193 - 200 cm Seat Tube Length:620 mm Head Tube Length:195 mm Manufacturer Number: cosmic blue | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB46 cosmic blue | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB49 cosmic blue | S | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB52 cosmic blue | M | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB54 cosmic blue | L | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB56 cosmic blue | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB58 cosmic blue | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB60 cosmic blue | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAACB62 mystic grey | XXS | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG46 mystic grey | XS | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG49 mystic grey | S | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG52 mystic grey | M | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG54 mystic grey | L | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG56 mystic grey | XL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG58 mystic grey | XXL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG60 mystic grey | XXXL | 1 1/8" - 1,5" tapered | 47 mm | 28": 25BHAAMG62 Contents: 1 × Blackheart Allroad AL frame 1 × Fork 1 × Headset 1 × Seatpost 1 × Seatpost clamp 2 × Thru-axle 1 × Spare derailleur hanger Manufacturer: BlackHeart Bike Company 10219 Worchester Circle Truckee CA 96161 USA hello@blackheartbikeco.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
