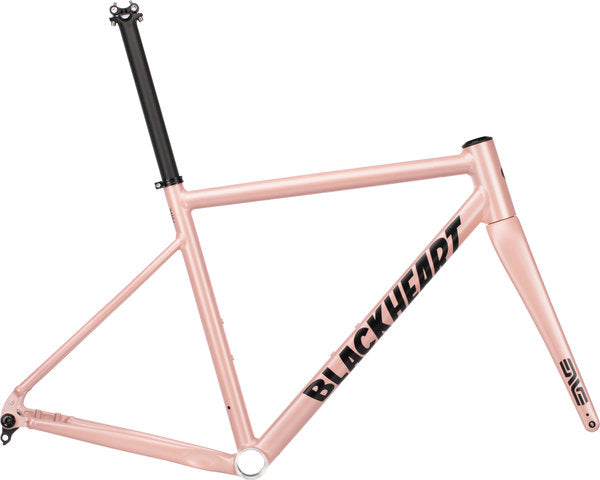

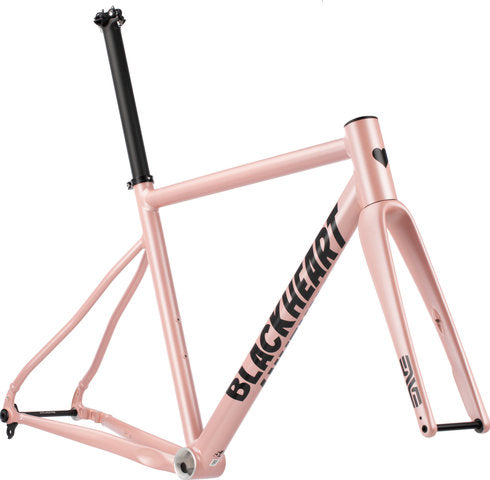

Product Description Elevate your road cycling experience with this Road AL frame by Blackheart, designed for bikers who demand the best in performance and comfort. Crafted from high-quality aluminum, this frame promises durability and a lightweight feel, ensuring you can tackle long distances with ease. The integration of a carbon fork not only enhances steering precision but also absorbs road vibrations, offering a smoother ride. The frame is engineered for the modern road cyclist, supporting both 1x and 2x chainring setups to match your riding style and terrain. Designed for disc brakes, with flat mount brake mounts and accommodating up to 160 mm discs both front and rear, it checks the boxes for modern standards. The wheel standard compatibility of 12 x 100 mm front and 12 x 142 mm rear, combined with a sleek bolt design, guarantees a robust and responsive wheelset integration. This frame is your ticket to achieving peak performance and comfort on all your road cycling adventures. Product Specifications: Wheel size:28" Application:Road Housing Width:68 mm seat clamp type:Bolt Brake Type:disc Compatible Saddle Rails:7 x 7 mm (Standard) Frame material:Aluminum Fork material:Carbon Gender:Women's, Men´s frozen berry | 28" | XXS: Wheel size:28" frozen berry | 28" | XS: Wheel size:28" frozen berry | 28" | S: Wheel size:28" frozen berry | 28" | M: Wheel size:28" frozen berry | 28" | L: Wheel size:28" frozen berry | 28" | XL: Wheel size:28" frozen berry | 28" | XXL: Wheel size:28" frozen berry | 28" | XXXL: Wheel size:28" pursuit purple | 28" | 43 mm | XXS: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | XS: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | S: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | M: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | L: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | XL: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | XXL: Wheel size:28" Gender:Women's, Men´s pursuit purple | 28" | 43 mm | XXXL: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | XXS: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | XS: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | S: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | M: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | L: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | XL: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | XXL: Wheel size:28" Gender:Women's, Men´s hunter green | 28" | 43 mm | XXXL: Wheel size:28" Gender:Women's, Men´s Technical Information: Wheel Standard:12 x 100 mm (Standard), 12 x 142 mm (Standard) Brake Mount:Flat Mount Seatpost diameter:31,6 mm Bottom bracket standard:T47 pursuit purple | 28" | 43 mm | XXS: Fork Offset:43 mm pursuit purple | 28" | 43 mm | XS: Fork Offset:43 mm pursuit purple | 28" | 43 mm | S: Fork Offset:43 mm pursuit purple | 28" | 43 mm | M: Fork Offset:43 mm pursuit purple | 28" | 43 mm | L: Fork Offset:43 mm pursuit purple | 28" | 43 mm | XL: Fork Offset:43 mm pursuit purple | 28" | 43 mm | XXL: Fork Offset:43 mm pursuit purple | 28" | 43 mm | XXXL: Fork Offset:43 mm hunter green | 28" | 43 mm | XXS: Fork Offset:43 mm hunter green | 28" | 43 mm | XS: Fork Offset:43 mm hunter green | 28" | 43 mm | S: Fork Offset:43 mm hunter green | 28" | 43 mm | M: Fork Offset:43 mm hunter green | 28" | 43 mm | L: Fork Offset:43 mm hunter green | 28" | 43 mm | XL: Fork Offset:43 mm hunter green | 28" | 43 mm | XXL: Fork Offset:43 mm hunter green | 28" | 43 mm | XXXL: Fork Offset:43 mm Approved For: Weight Limit:100 kgRider Chainring Count Compatibility:1x, 2x Max. Disc Brake Size Rear:160 mm Max. Disc Brake Size Front:160 mm Max Tire Size Rear:34-622 (700 x 34C) Product Features: Versatile road bike frame featuring a sleek aluminum frame and carbon fork for a lightweight and responsive ride.Equipped with a T47 bottom bracket standard and a 31.6 mm seatpost diameter, ensuring compatibility with a wide range of drivetrains and seating options.Supports max disc brake sizes of 160 mm at both the front and rear, with a flat mount brake type for superior stopping power and control.Designed for modern road cycling, accommodating both 1x (elctronic or mechanical) and 2x (electronic only) chainring setups to match rider preference and terrain.Features standard wheel compatibility of 12 x 100 mm (front) and 12 x 142 mm (rear), ensuring a stable and smooth ride across various road conditions.UDH derailleur hanger. Geometry: pursuit purple | 28" | 43 mm | XXS: Head Tube Angle:71.5 Stack:503 mm Standover Height:650 mm Wheelbase:967 mm Reach:375 mm Seat Tube Angle:75.5 BB Drop:74 mm Head Tube Length:95 mm Seat Tube Length:440 mm Recommended Rider Height:152 - 160 cm Top Tube Length:505 mm Frame Size:46 cm pursuit purple | 28" | 43 mm | XS: Head Tube Angle:72 Stack:514 mm Standover Height:675 mm Wheelbase:969 mm Reach:377 mm Seat Tube Angle:75 BB Drop:74 mm Recommended Rider Height:160 - 168 cm Top Tube Length:515 mm Frame Size:49 cm Head Tube Length:105 mm Seat Tube Length:460 mm pursuit purple | 28" | 43 mm | S: Head Tube Angle:72.5 Stack:530 mm Standover Height:700 mm Wheelbase:970 mm Reach:378 mm Seat Tube Angle:74.5 BB Drop:74 mm Recommended Rider Height:168 - 173 cm Top Tube Length:525 mm Frame Size:52 cm Head Tube Length:120 mm Seat Tube Length:480 mm pursuit purple | 28" | 43 mm | M: Head Tube Angle:73 Stack:545 mm Standover Height:725 mm Wheelbase:976 mm Reach:384 mm Seat Tube Angle:74 BB Drop:73 mm Recommended Rider Height:173 - 178 cm Top Tube Length:540 mm Frame Size:54 cm Head Tube Length:135 mm Seat Tube Length:500 mm pursuit purple | 28" | 43 mm | L: Head Tube Angle:73 Stack:560 mm Standover Height:750 mm Wheelbase:986 mm Reach:389 mm Seat Tube Angle:73.5 BB Drop:73 mm Recommended Rider Height:178 - 183 cm Top Tube Length:555 mm Frame Size:56 cm Head Tube Length:150 mm Seat Tube Length:515 mm pursuit purple | 28" | 43 mm | XL: Head Tube Angle:73.5 Stack:576 mm Standover Height:775 mm Wheelbase:992 mm Reach:394 mm Seat Tube Angle:73.5 BB Drop:73 mm Recommended Rider Height:183 - 188 cm Top Tube Length:565 mm Frame Size:58 cm Head Tube Length:165 mm Seat Tube Length:530 mm pursuit purple | 28" | 43 mm | XXL: Head Tube Angle:73.5 Stack:589 mm Standover Height:800 mm Wheelbase:1007 mm Reach:406 mm Seat Tube Angle:73.5 BB Drop:72 mm Recommended Rider Height:188 - 193 cm Top Tube Length:580 mm Frame Size:60 cm Head Tube Length:180 mm Seat Tube Length:545 mm pursuit purple | 28" | 43 mm | XXXL: Head Tube Angle:74 Stack:610 mm Standover Height:825 mm Wheelbase:1016 mm Reach:414 mm Seat Tube Angle:73 BB Drop:72 mm Recommended Rider Height:193 - 200 cm Top Tube Length:600 mm Head Tube Length:200 mm Seat Tube Length:565 mm Frame Size:62 cm hunter green | 28" | 43 mm | XXS: Head Tube Angle:71.5 Stack:503 mm Standover Height:650 mm Wheelbase:967 mm Reach:375 mm Seat Tube Angle:75.5 BB Drop:74 mm Recommended Rider Height:152 - 160 cm Top Tube Length:505 mm Frame Size:46 cm Head Tube Length:95 mm Seat Tube Length:440 mm hunter green | 28" | 43 mm | XS: Head Tube Angle:72 Stack:514 mm Standover Height:675 mm Wheelbase:969 mm Reach:377 mm Seat Tube Angle:75 BB Drop:74 mm Recommended Rider Height:160 - 168 cm Top Tube Length:515 mm Frame Size:49 cm Head Tube Length:105 mm Seat Tube Length:460 mm hunter green | 28" | 43 mm | S: Head Tube Angle:72.5 Stack:530 mm Standover Height:700 mm Wheelbase:970 mm Reach:378 mm Seat Tube Angle:74.5 BB Drop:74 mm Recommended Rider Height:168 - 173 cm Top Tube Length:525 mm Frame Size:52 cm Head Tube Length:120 mm Seat Tube Length:480 mm hunter green | 28" | 43 mm | M: Head Tube Angle:73 Stack:545 mm Standover Height:725 mm Wheelbase:976 mm Reach:384 mm Seat Tube Angle:74 BB Drop:73 mm Recommended Rider Height:173 - 178 cm Top Tube Length:540 mm Frame Size:54 cm Head Tube Length:135 mm Seat Tube Length:500 mm hunter green | 28" | 43 mm | L: Head Tube Angle:73 Stack:560 mm Standover Height:750 mm Wheelbase:986 mm Reach:389 mm Seat Tube Angle:73.5 BB Drop:73 mm Recommended Rider Height:178 - 183 cm Top Tube Length:555 mm Frame Size:56 cm Head Tube Length:150 mm Seat Tube Length:515 mm hunter green | 28" | 43 mm | XL: Head Tube Angle:73.5 Stack:576 mm Standover Height:775 mm Wheelbase:992 mm Reach:394 mm Seat Tube Angle:73.5 BB Drop:73 mm Top Tube Length:565 mm Frame Size:58 cm Head Tube Length:165 mm Seat Tube Length:530 mm Recommended Rider Height:183 - 188 cm hunter green | 28" | 43 mm | XXL: Head Tube Angle:73.5 Stack:589 mm Standover Height:800 mm Wheelbase:1007 mm Reach:406 mm Seat Tube Angle:73.5 BB Drop:72 mm Recommended Rider Height:188 - 193 cm Top Tube Length:580 mm Frame Size:60 cm Head Tube Length:180 mm Seat Tube Length:545 mm hunter green | 28" | 43 mm | XXXL: Head Tube Angle:74 Stack:610 mm Standover Height:825 mm Wheelbase:1016 mm Reach:414 mm Seat Tube Angle:73 BB Drop:72 mm Recommended Rider Height:193 - 200 cm Top Tube Length:600 mm Frame Size:62 cm Head Tube Length:200 mm Seat Tube Length:565 mm Manufacturer Number: frozen berry | 28" | XXS: 25BHRAFB46 frozen berry | 28" | XS: 25BHRAFB49 frozen berry | 28" | S: 25BHRAFB52 frozen berry | 28" | M: 25BHRAFB54 frozen berry | 28" | L: 25BHRAFB56 frozen berry | 28" | XL: 25BHRAFB58 frozen berry | 28" | XXL: 25BHRAFB60 frozen berry | 28" | XXXL: 25BHRAFB62 pursuit purple | 28" | 43 mm | XXS: 25BHRAPP46 pursuit purple | 28" | 43 mm | XS: 25BHRAPP49 pursuit purple | 28" | 43 mm | S: 25BHRAPP52 pursuit purple | 28" | 43 mm | M: 25BHRAPP54 pursuit purple | 28" | 43 mm | L: 25BHRAPP56 pursuit purple | 28" | 43 mm | XL: 25BHRAPP58 pursuit purple | 28" | 43 mm | XXL: 25BHRAPP60 pursuit purple | 28" | 43 mm | XXXL: 25BHRAPP62 hunter green | 28" | 43 mm | XXS: 25BHRAHG46 hunter green | 28" | 43 mm | XS: 25BHRAHG49 hunter green | 28" | 43 mm | S: 25BHRAHG52 hunter green | 28" | 43 mm | M: 25BHRAHG54 hunter green | 28" | 43 mm | L: 25BHRAHG56 hunter green | 28" | 43 mm | XL: 25BHRAHG58 hunter green | 28" | 43 mm | XXL: 25BHRAHG60 hunter green | 28" | 43 mm | XXXL: 25BHRAHG62 Contents: 1 × Blackheart Road AL frame 1 × Fork 1 × Headset 1 × Seatpost 1 × Seatpost clamp 2 × Thru-axle 1 × Spare derailleur hanger UDH Manufacturer: BlackHeart Bike Company 10219 Worchester Circle Truckee CA 96161 USA hello@blackheartbikeco.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
